DeerValley DV-1F52102 One-piece Toilets Modern Fan Shape Seamless Comfort Dual-Flush 1.1/1.6 GPF

DeerValley DV-1F52102 One-piece Toilets Modern Fan Shape Seamless Comfort Dual-Flush 1.1/1.6 GPF

 One-piece Toilets Best Toilet Top Rated Toilets

The modern DeerValley Dual-Flush Elongated One-Piece Toilet with a full-skirted bowl has clean lines and presents a simple and elegant visual experience, suitable for most styles of bathrooms. The unique fan-shaped design on the side incorporates an Oriental aesthetic. Concealed trap-way and seamless design make cleaning easier. Dual-flush functionality offers more options and maximizes efficacy, the super Jet siphon flush provides a powerful flush that keeps the toilet from clogging and saves water. High temperature-calcined ceramic glaze integrated white toilet has a strong texture, good pressure resistance, strong corrosion resistance, and good scratch resistance. In addition, the toilet seat has a soft-close function to reduce collision noise, and the seat has a large contact area with your butt, providing a quiet and comfortable experience.

Features

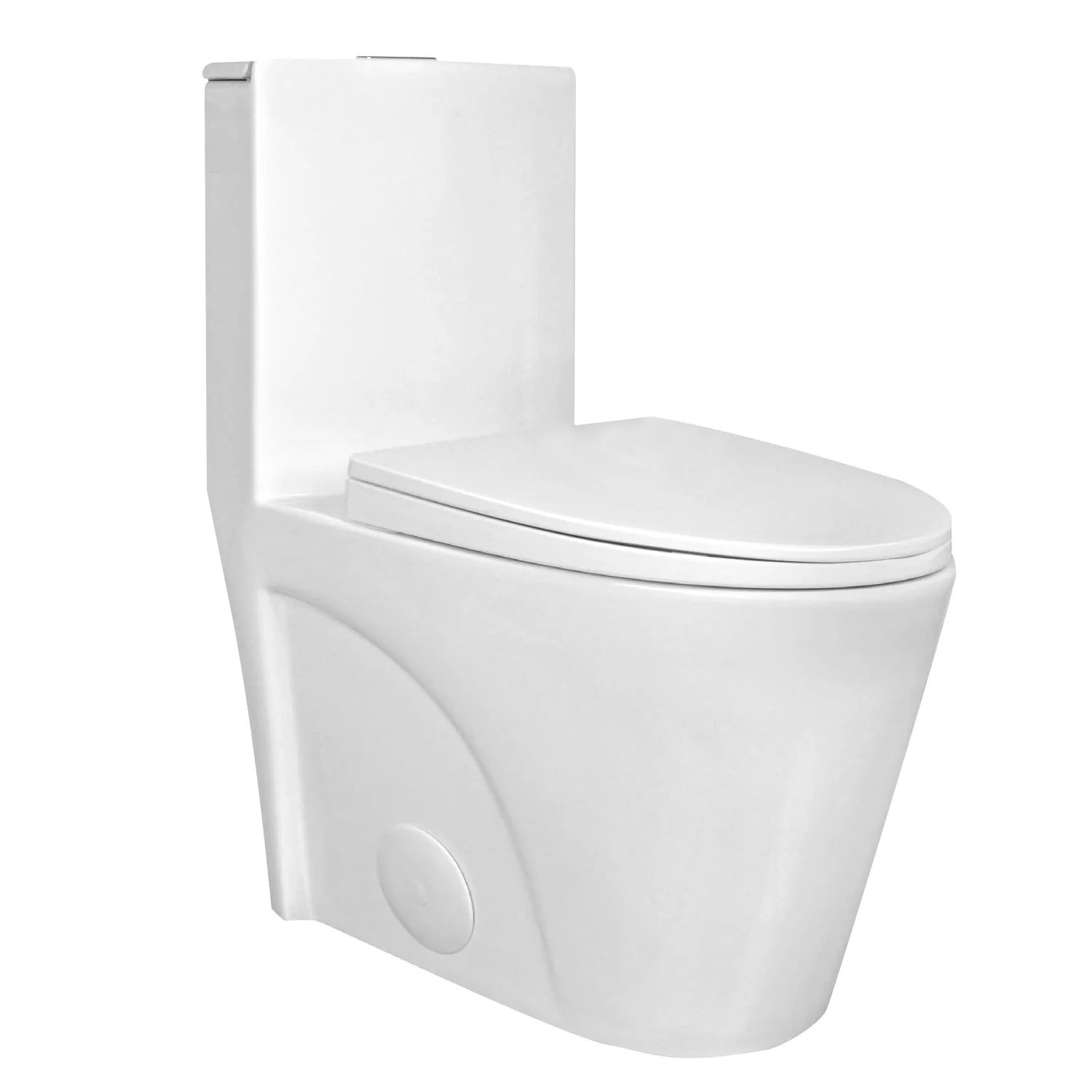

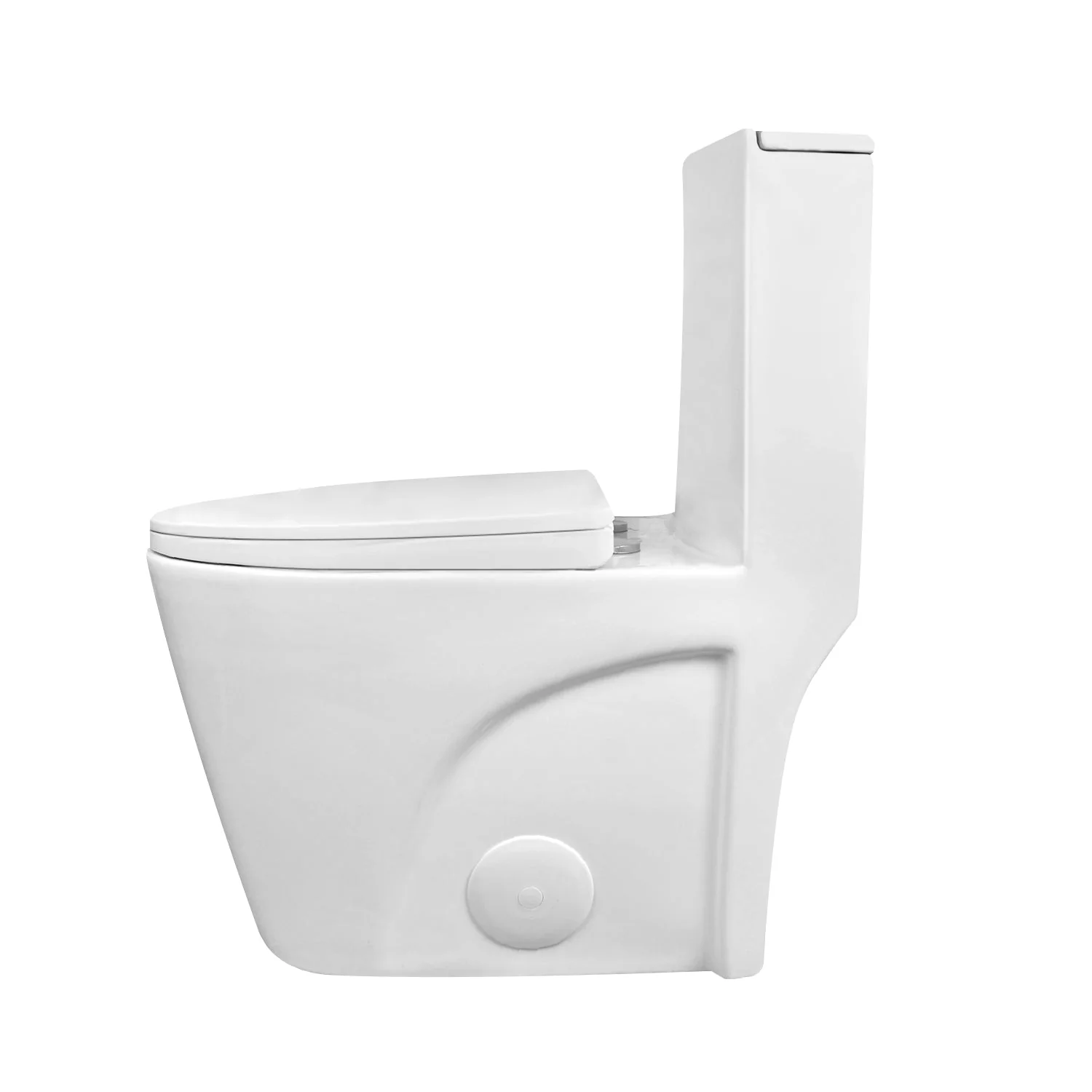

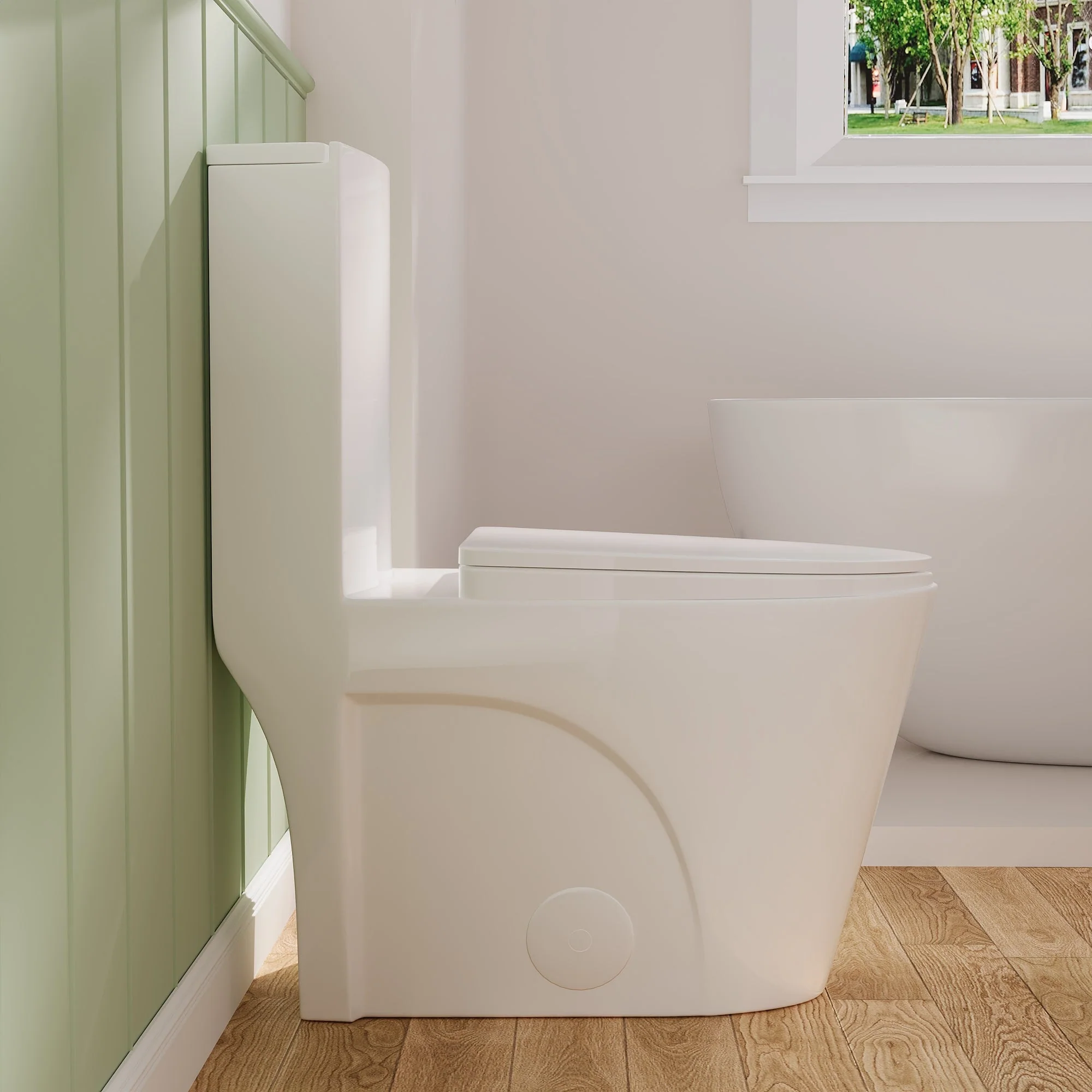

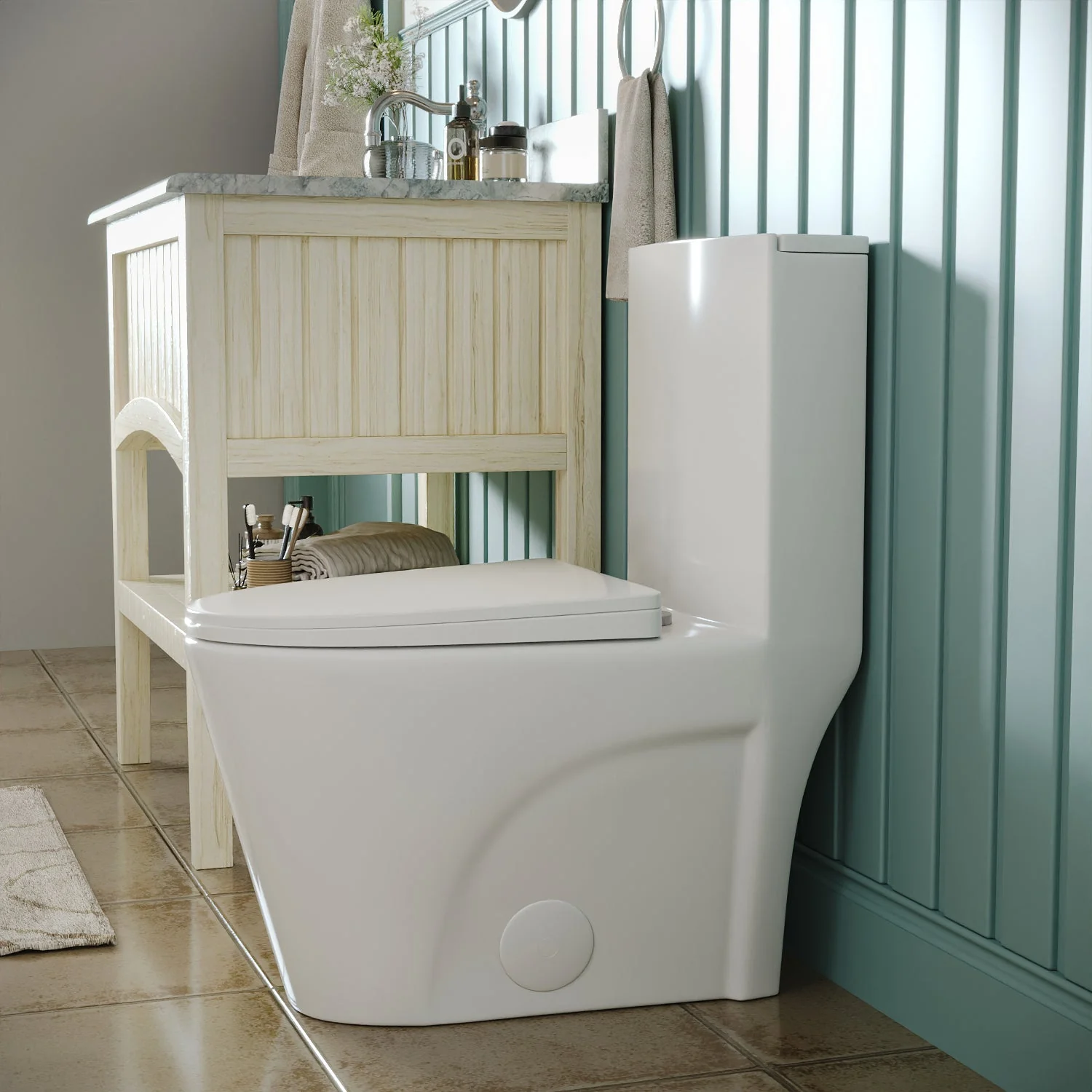

  • The side of the DeerValley one-piece toilet has a unique fan-shaped design with a classical Oriental aesthetic. It brings an elegant experience to your bathroom.

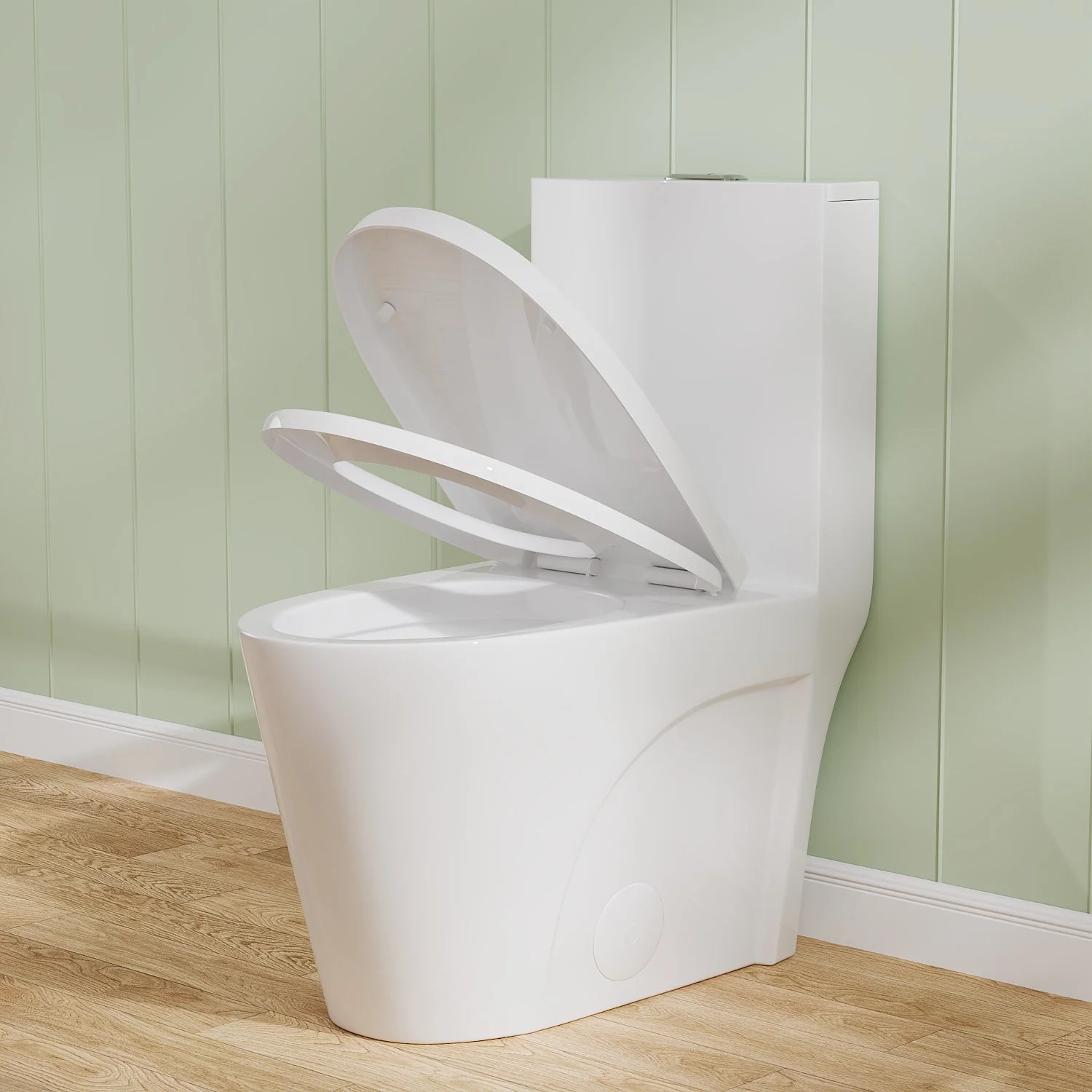

  • This elongated toilet seat allows more contact with your butt and legs, allowing you to feel comfortable without numbness. Soft closed seat design reduces noise and brings you peace.
  • A toilet seat with a soft closing function can avoid excessive force when closing the toilet seat which is beneficial to prolong the service life.
  • All-in-One package: including toilet, pre-installed soft closing toilet seat, pre-installed flush valve, high-quality wax ring, floor bolts, and installation instructions.

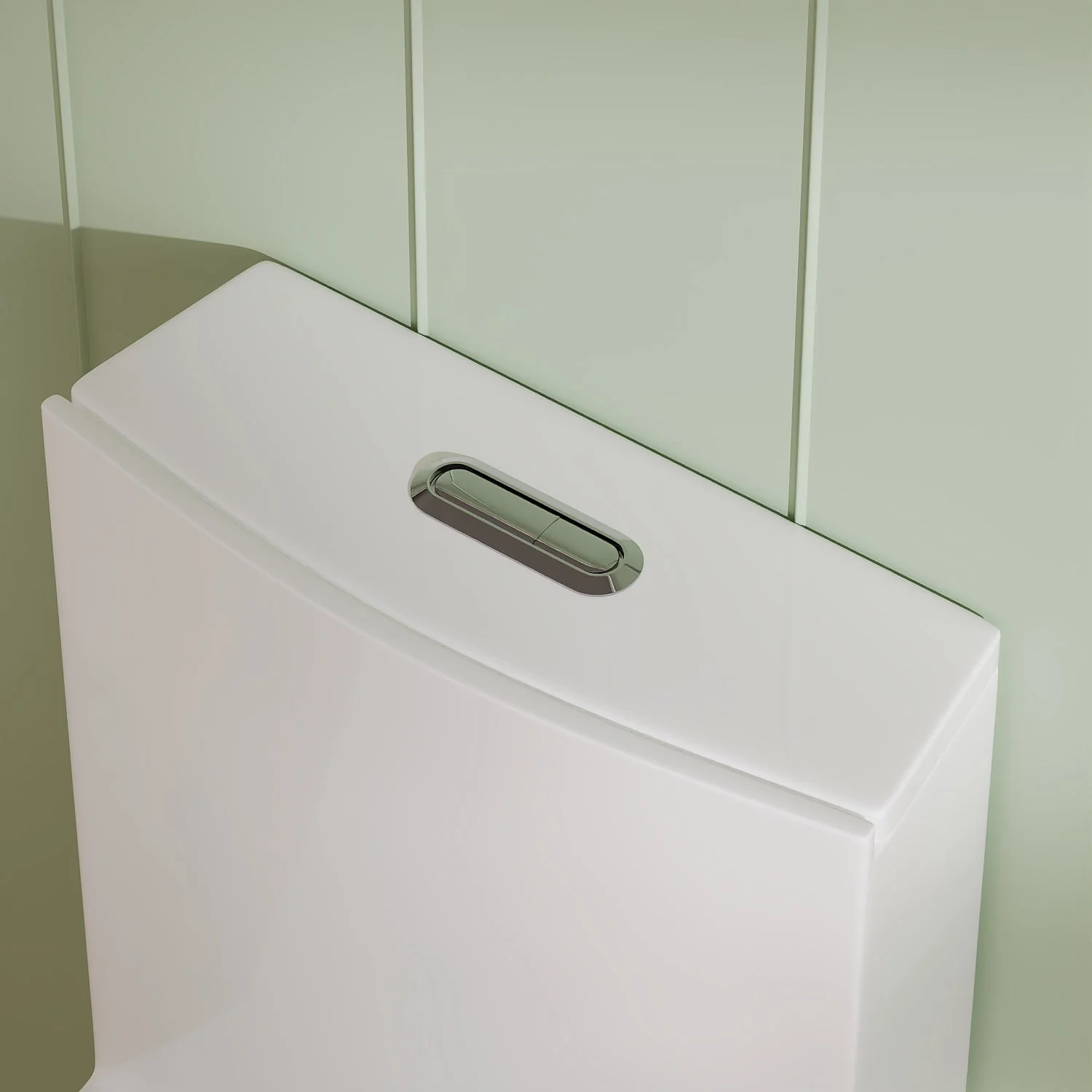

  • DeerVally highly efficient dual-flush toilet allows you to proactively conserve water by selecting 1.1 GPF or higher ( 1.6 GPF ) for multiple jobs. Siphon flushing toilet with the fully glazed flush system, bringing super quiet and powerful flushing - No clogs, No leaks, and No problems.

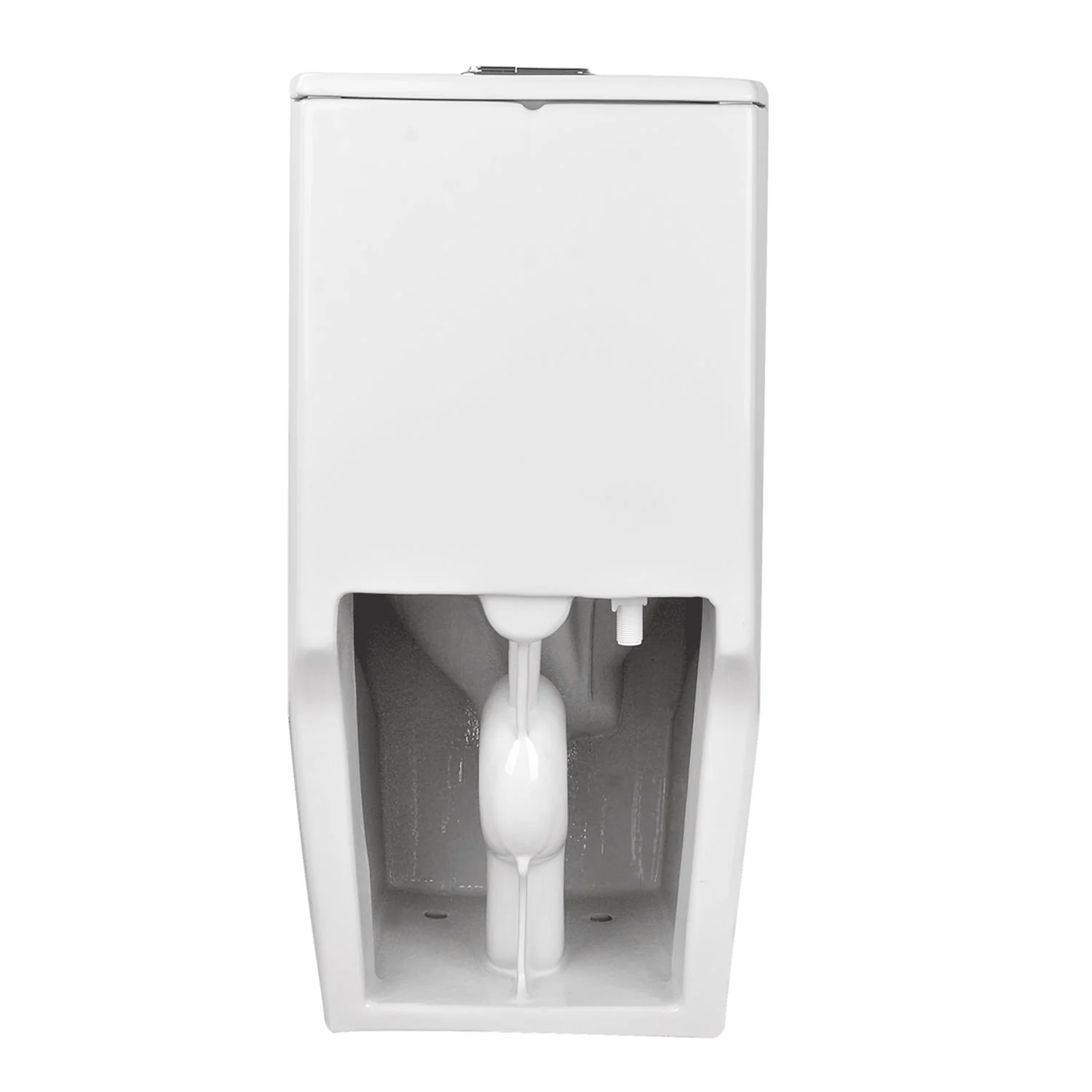

  • The concealed trap-way and fully glazed surface design for this one-piece white toilet make cleaning much easier. It has no corners or grooves and is very easy to reach for cleaning.
  • This floor-mounted one-piece toilet is easily installed, but please note that the water supply must be turned off before installation.

Certifications

cUPC: Uniquely blend safety, hygiene, quality, and performance.

EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.
MaP:Powerfully blend flushing performance, reliability, waste clearance, and durability.
DOE:Strictly blend energy efficiency, regulatory compliance, conservation, and performance.

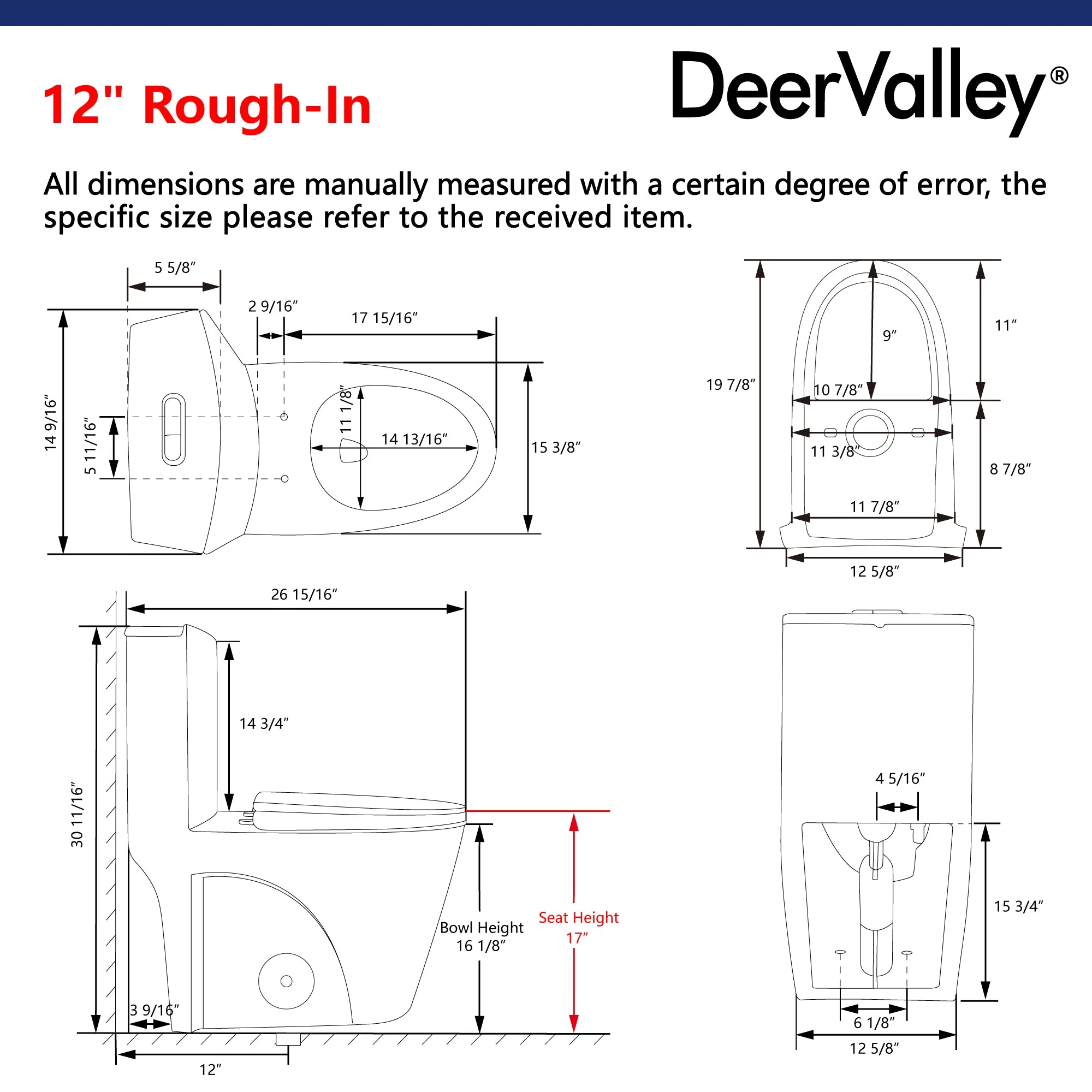

Weights & Dimensions

Overall: 26.97"L X 15.35"W X 30.31"H
Rough In Size: 12" / 10"
Toilet Seat Height - Top to Bottom: 17.32"
Bowl Height - Top to Bottom: 16.14"
Tank: 14.76"H X 14.76"L X 5.91"W
Tank Lid: 0.63"H X 14.57"L X 5.63"W
Bolts Spread Distance: 5.67"
Distance from the Seat Installation Hole to the Tank: 2.56"
Distance from the Back of the Toilet to the Wall: 3.54"
Toilet Installation Hole Distance: 6.1"
Height from the Bottom of the Water Tank to the Ground: 15.75"
Distance Between the Center of Adapter and the Center of Trapway: 4.33"
Trapway Diameter(Inside): 2.17"
Toilet Seat: 2.36/3.43 Back/Front" H X 14.96"W X 17.91"L
Toilet Seat Inside Ring: 8.98"W X 12.36"L
Bowl: 14.84"L X 11.1"W X 16.14"H
Toilet Base Dimension: 19.88"L X 12.6"W
Overall Product Weight: 117 lb.
Flush Volume: 1.1/1.6 GPF
One-piece Toilets Specifications

What is included in the package?

  • Toilet Flange, Toilet tank side lid.

Compatible Accessories

  • Flush Button: DV-F102V31
  • Toilet Seat: DV-F102S11
  • Tank Lid: DV-F102T11
  • Waxring and Toilet Bolts: DV-F008P11
  • Toilet Seat Quick Release Bracket: DV-F102S01
  • Side Bolt Cover: DV-F026P21

Toilet Seat Bidet:

DeerValley's Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.

  • DV-1B0093&DV-1B0095

Installation Manual:





Select Rough-In Size
Select Style
From $258.00
